Concentration-measuring gas detectors DG/P
Concentration measurement and detection devices for toxic and combustible gases (also oxygen and refrigerants) with splash-proof construction with 4-20 mA connectivity
Detectors DG/P are used for continuous monitoring of premises for combustible and toxic gases. The detector performs cyclic measurement of gas concentration in the air and transmits the measured value in 4-20 mA standard (passive output).
DG/P detectors are designed to work with:
- measuring and threshold control units of type MDP-1.A/T, MDP-1 PLUS, MDP-4, MDP-8, MDP-16;
- addressable control units of type MDD-1, MDD-1/T, MDD-1x/T;
- with any other control panels accepting the 4-20 mA input line standard (with current emission).
For use with control units from other manufacturers, GAZEX recommends to use detectors type DG/PV with dual outputs (active 4-20 mA and 2-10 V).
Features
- 4-20mA standard analog output (passive);
- easily exchangeable sensor unit and easy maintenance;
- easy change of the detected gas or calibration of the detector;
- built-in temperature compensation;
- infra-red sensor for combustible gases or electrochemical sensor for toxic gases or oxygen;
- sensor unit with “zero” and “span” regulation (calibration outside the detector);
- low-cost operation;
- all detectors are calibrated in our own GAZEX Calibration Laboratory operating in accordance with PN-EN ISO/IEC 17025 (PCA accreditation No AP150).

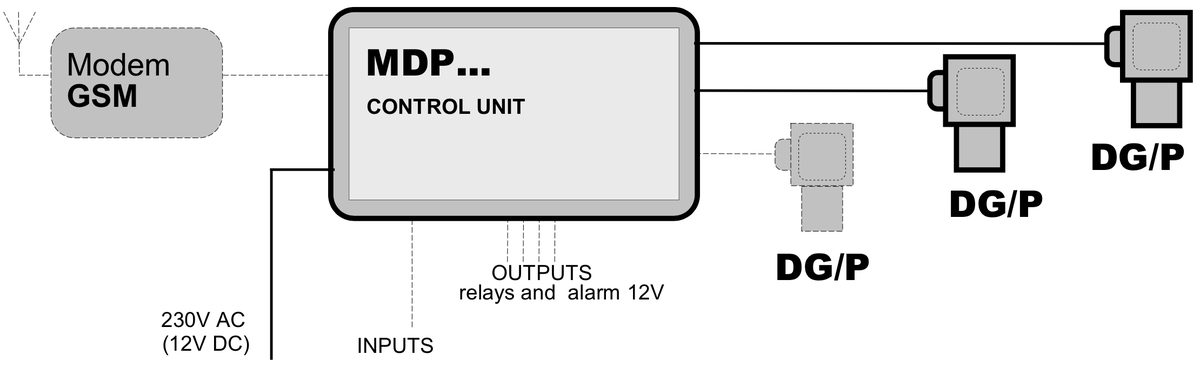

Typical system configuration
Offered models
| Model | Gas sensor module | Sensor | Substance/property | Standard alarm thresholds | Measuring range | Unit | Supply voltage | Net price | C.g. | |
|---|---|---|---|---|---|---|---|---|---|---|
| DG-P1KL/N |
|
MS-1KL/N | Catalytic |
Methane (CH4) |
10/30/50 |
10—50 |
%LEL |
System powered | PLN1,199.00 | N |
| DG-P1KL4/N |
|
MS-1KL4/N | Catalytic |
Methane (CH4) |
10/30/50 |
10—50 |
%LEL |
System powered | PLN1,099.00 | N |
| DG-P1KL5/N |
|
MS-1KL5/N | Catalytic |
Liquefied petroleum gas (LPG) |
10/30/50 |
10—50 |
%LEL |
System powered | PLN1,099.00 | N |
| DG-P7KL3/N |
|
MS-7KL3/N | Catalytic |
Hydrogen (H2) |
10/30/50 |
10—50 |
%LEL |
System powered | PLN1,099.00 | N |
| DG-P0E.CL2/N |
|
MS-0E.CL2/N | Electrochemical |
Chlorine (Cl2) |
1/3/5 |
1—10 |
ppm |
System powered | PLN1,449.00 | N |
| DG-P0E.CLO2/N |
|
MS-0E.CLO2/N | Electrochemical |
Chlorine dioxide (ClO2) |
0,1/0,3/0,5 |
0—1 |
ppm |
System powered | PLN2,449.00 | N |
| DG-P0E.ETO/N |
|
MS-0E.ETO/N | Electrochemical |
Ethylene oxide (C2H4O) |
2/5/10 |
2—20 |
ppm |
System powered | PLN1,449.00 | N |
| DG-P0E.HCL/N |
|
MS-0E.HCL/N | Electrochemical |
Hydrogen chloride (HCl) |
3,4/6,8/10 |
3—10 |
ppm |
System powered | PLN1,949.00 | N |
| DG-P0E.NO2/N |
|
MS-0E.NO2/N | Electrochemical |
Nitrogen dioxide (NO2) |
1/3/5 |
1—30 |
ppm |
System powered | PLN1,449.00 | N |
| DG-P0E.O3/N |
|
MS-0E.O3/N | Electrochemical |
Ozone (O3) |
0,2/0,3/0,5 |
0—1 |
ppm |
System powered | PLN1,949.00 | N |
| DG-P0E.SO2/N |
|
MS-0E.SO2/N | Electrochemical |
Sulfur dioxide (SO2) |
0,5/1/5 |
1—20 |
ppm |
System powered | PLN1,449.00 | N |
| DG-P2E/N |
|
MS-2E/N | Electrochemical |
Carbon monoxide (CO) |
20/100/200 |
20—500 |
ppm |
System powered | PLN1,199.00 | N |
| DG-P4E/N |
|
MS-4E/N | Electrochemical |
Ammonia (NH3) |
500/800/800 |
300—1000 |
ppm |
System powered | PLN1,199.00 | N |
| DG-P4E/N1 |
|
MS-4E/N1 | Electrochemical |
Ammonia (NH3) |
20/40/60 |
5—100 |
ppm |
System powered | PLN1,199.00 | N |
| DG-P4E/N2 |
|
MS-4E/N2 | Electrochemical |
Ammonia (NH3) |
20/40/60 |
5—100 |
ppm |
System powered | PLN1,469.00 | N |
| DG-P5E/N |
|
MS-5E/N | Electrochemical |
Hydrogen sulfide (H2S) |
5/10/20 |
5—100 |
ppm |
System powered | PLN1,199.00 | N |
| DG-P7E/N |
|
MS-7E/N | Electrochemical |
Hydrogen (H2) |
500/800/1000 |
500—2000 |
ppm |
System powered | PLN1,199.00 | N |
| DG-P9E5/N |
|
MS-9E5/N | Electrochemical |
Oxygen (O2) |
19/18/17 |
2—25 |
%v/v |
System powered | PLN1,199.00 | N |
| DG-P1R2/N |
|
MS-1R2/N | Infra-red |
Methane (CH4) |
10/30/50 |
5—50 |
%LEL |
System powered | PLN1,999.00 | N |
| DG-P1R5/N |
|
MS-1R5/N | Infra-red |
Liquefied petroleum gas (LPG) |
10/30/50 |
5—50 |
%LEL |
System powered | PLN1,999.00 | N |
| DG-P3R/N |
|
MS-3R/N | Infra-red |
Organic compounds |
20/40/50 |
10—50 |
%LEL |
System powered | PLN2,199.00 | N |
| DG-P6R7/N |
|
MS-6R7/N | Infra-red |
R32 or R410A |
500/1500/2000 |
500—2000 |
ppm |
System powered | F | |
| DG-P6R7/N-SF6 |
|
MS-6R7/N-SF6 | Infra-red |
Sulfur hexafluoride (SF6) |
500/1500/2000 |
500—2000 |
ppm |
System powered | F | |
| DG-P8R/N |
|
MS-8R/N | Infra-red |
Carbon dioxide (CO2) |
0,5/1,5/2 |
0—5 |
%v/v |
System powered | PLN1,999.00 | N |
| DG-P8R8/N |
|
MS-8R8/N | Infra-red |
Carbon dioxide (CO2) |
0,5/1,5/2 |
0—2 |
%v/v |
System powered | PLN1,449.00 | N |
| Model | Gas sensor module | Sensor | Substance/property | Standard alarm thresholds | Measuring range | Unit | Supply voltage | Contact control outputs | Voltage control outputs 12VDC | Two-state outputs (threshold) | Control output "Fault" | Output controlling the shut-off valve | 4-20 mA analog output | 2-10 V analog output | RS-485 digital output | Visual signalling, built-in | Acoustic signaling, built-in | Internal battery | Dimensions | Net price | C.g. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DG-P1KL/N |
|
MS-1KL/N | Catalytic |
Methane (CH4) |
10/30/50 |
10—50 |
%LEL |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | — | PLN1,199.00 | N |
| DG-P1KL4/N |
|
MS-1KL4/N | Catalytic |
Methane (CH4) |
10/30/50 |
10—50 |
%LEL |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | — | PLN1,099.00 | N |
| DG-P1KL5/N |
|
MS-1KL5/N | Catalytic |
Liquefied petroleum gas (LPG) |
10/30/50 |
10—50 |
%LEL |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | — | PLN1,099.00 | N |
| DG-P7KL3/N |
|
MS-7KL3/N | Catalytic |
Hydrogen (H2) |
10/30/50 |
10—50 |
%LEL |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | — | PLN1,099.00 | N |
| DG-P0E.CL2/N |
|
MS-0E.CL2/N | Electrochemical |
Chlorine (Cl2) |
1/3/5 |
1—10 |
ppm |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN1,449.00 | N |
| DG-P0E.CLO2/N |
|
MS-0E.CLO2/N | Electrochemical |
Chlorine dioxide (ClO2) |
0,1/0,3/0,5 |
0—1 |
ppm |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN2,449.00 | N |
| DG-P0E.ETO/N |
|
MS-0E.ETO/N | Electrochemical |
Ethylene oxide (C2H4O) |
2/5/10 |
2—20 |
ppm |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN1,449.00 | N |
| DG-P0E.HCL/N |
|
MS-0E.HCL/N | Electrochemical |
Hydrogen chloride (HCl) |
3,4/6,8/10 |
3—10 |
ppm |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN1,949.00 | N |
| DG-P0E.NO2/N |
|
MS-0E.NO2/N | Electrochemical |
Nitrogen dioxide (NO2) |
1/3/5 |
1—30 |
ppm |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN1,449.00 | N |
| DG-P0E.O3/N |
|
MS-0E.O3/N | Electrochemical |
Ozone (O3) |
0,2/0,3/0,5 |
0—1 |
ppm |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN1,949.00 | N |
| DG-P0E.SO2/N |
|
MS-0E.SO2/N | Electrochemical |
Sulfur dioxide (SO2) |
0,5/1/5 |
1—20 |
ppm |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN1,449.00 | N |
| DG-P2E/N |
|
MS-2E/N | Electrochemical |
Carbon monoxide (CO) |
20/100/200 |
20—500 |
ppm |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN1,199.00 | N |
| DG-P4E/N |
|
MS-4E/N | Electrochemical |
Ammonia (NH3) |
500/800/800 |
300—1000 |
ppm |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN1,199.00 | N |
| DG-P4E/N1 |
|
MS-4E/N1 | Electrochemical |
Ammonia (NH3) |
20/40/60 |
5—100 |
ppm |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN1,199.00 | N |
| DG-P4E/N2 |
|
MS-4E/N2 | Electrochemical |
Ammonia (NH3) |
20/40/60 |
5—100 |
ppm |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN1,469.00 | N |
| DG-P5E/N |
|
MS-5E/N | Electrochemical |
Hydrogen sulfide (H2S) |
5/10/20 |
5—100 |
ppm |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN1,199.00 | N |
| DG-P7E/N |
|
MS-7E/N | Electrochemical |
Hydrogen (H2) |
500/800/1000 |
500—2000 |
ppm |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN1,199.00 | N |
| DG-P9E5/N |
|
MS-9E5/N | Electrochemical |
Oxygen (O2) |
19/18/17 |
2—25 |
%v/v |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | — | PLN1,199.00 | N |
| DG-P1R2/N |
|
MS-1R2/N | Infra-red |
Methane (CH4) |
10/30/50 |
5—50 |
%LEL |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN1,999.00 | N |
| DG-P1R5/N |
|
MS-1R5/N | Infra-red |
Liquefied petroleum gas (LPG) |
10/30/50 |
5—50 |
%LEL |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN1,999.00 | N |
| DG-P3R/N |
|
MS-3R/N | Infra-red |
Organic compounds |
20/40/50 |
10—50 |
%LEL |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN2,199.00 | N |
| DG-P6R7/N |
|
MS-6R7/N | Infra-red |
R32 or R410A |
500/1500/2000 |
500—2000 |
ppm |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | F | |
| DG-P6R7/N-SF6 |
|
MS-6R7/N-SF6 | Infra-red |
Sulfur hexafluoride (SF6) |
500/1500/2000 |
500—2000 |
ppm |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | F | |
| DG-P8R/N |
|
MS-8R/N | Infra-red |
Carbon dioxide (CO2) |
0,5/1,5/2 |
0—5 |
%v/v |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN1,999.00 | N |
| DG-P8R8/N |
|
MS-8R8/N | Infra-red |
Carbon dioxide (CO2) |
0,5/1,5/2 |
0—2 |
%v/v |
System powered | — | — | — | — | — | ✓ | — | — | ✓ | — | — | 110 x 140 x 55 mm | PLN1,449.00 | N |
