Legal basis (in Polish law)

Dział IV
Wyposażenie techniczne budynków
Rozdział 7
Instalacja gazowa na paliwa gazowe


§ 156. 6. Wymagania dla instalacji gazowych, o których mowa w rozporządzeniu, nie dotyczą instalacji przeznaczonych dla celów rolniczych i produkcyjno-przemysłowych (technologicznych).

§ 158. 1. Instalacje sygnalizujące niedopuszczalny poziom stężenia gazu mogą być stosowane w budynkach, w których jest ustanowiony stały nadzór, zapewniający podejmowanie działań zaradczych, a także w budynkach jednorodzinnych.
2. Czujki sygnalizujące niedopuszczalny poziom stężenia gazu w budynkach, o których mowa w ust. 1, powinny być instalowane w piwnicach i suterenach oraz w pomieszczeniach, w których istnieje możliwość nagromadzenia gazu przy stanach awaryjnych instalacji lub przyłącza gazowego.
3. Sygnały alarmowe stanu zagrożenia wybuchem w budynkach, z wyłączeniem budynków jednorodzinnych, powinny być kierowane do służb lub osób zobowiązanych do podjęcia skutecznej akcji zapobiegawczej.
4. Zabrania się instalowania urządzeń sygnalizacyjno-odcinających dopływ gazu do części mieszkalnej budynku
wielorodzinnego. Nie dotyczy to indywidualnych urządzeń sygnalizacyjno-odcinających dopływ gazu do odrębnych mieszkań.
5. Urządzenia sygnalizacyjno-odcinające dopływ gazu należy stosować w tych pomieszczeniach, w których łączna nominalna moc cieplna zainstalowanych urządzeń gazowych jest większa niż 60 kW.
6. Zawór odcinający dopływ gazu do budynku, będący elementem składowym urządzenia sygnalizacyjno-odcinającego, powinien być instalowany poza budynkiem, między kurkiem głównym a wprowadzeniem przewodu do budynku.

§ 176.9. Do pomieszczeń technicznych z zainstalowanymi kotłami o łącznej mocy cieplnej powyżej 60 kW do 2000 kW, zlokalizowanych w budynku o innym przeznaczeniu niż kotłownia, należy doprowadzić odrębny przewód gazowy, z którego nie mogą być zasilane pozostałe urządzenia gazowe w tym budynku.

Detected substance/property

Substance/property:
liquefied petroleum gas (LPG) §
Hazard:
explosive gas
LEL (lower explosive limit):
2.1 %v/v
Density relative to air:
1.8
Substance/property:
methane (CH4) §
Hazard:
explosive gas
LEL (lower explosive limit):
4.4 %v/v
Density relative to air:
0.55

Location of detectors

  1. Natural gas (methane): at the highest point of the room - under the ceiling above the gas-consuming appliances and/or in areas restricted by structural barriers preventing the free movement of gas (beams, skylights, etc.); lower edge of the detector approx. 30 cm below the highest point.
  2. Liquefied petroleum gas (propane-butane): on the floor, as close as possible to the gas consumers; lower edge of the detector approx. 30 cm above floor level.
  3. as close as possible to the point of emission.
  4. not in direct contact with outside air, water vapour, liquids, oily vapours, flue gases.
  5. away from supply air vents, window and door openings.

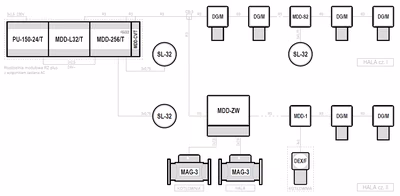

Standard configurations of gas detection systems

Example 1
System topology
Bus
Supply voltage of the control unit
24VDC
Control unit
MDD-256/T
Maximum number of gas detectors
224
Emergency power backup

Type of device: DEX/F — ATEX compliant, threshold detectors of toxic and combustible gases (also oxygen and refrigerants)
Type of device: DG/M — Threshold detectors of toxic and combustible gases (also oxygen and refrigerants) with splashproof construction and RS-485 bus connectivity
Type of device: MDD-1 — Addressable pass-through units for connecting one DEX/P, DEX/F, DG/P, DG/F or DG.EN detector to a digital bus in RS-485 standard
Type of device: MDD-256/T — Addressable control units for supervision of the Digital Gas Detection System, TS35 rail mounting
Type of device: MDD-L32/T — Addressable executive units for status visualization of 32 detectors, TS35 rail mounting
Type of device: MDD-N1 — Addressable alarm input connection units for connecting any dual-threshold gas detection system to a Digital Gas Detection System
Type of device: MDD-S2 — Addressable alarm output units for controlling visual and acoustic warning devices
Type of device: MDD-ZW — Addressable control units for MAG-3 shut-off valves
Type of device: SL-32 — Visual and acoustic warning devices for visual and acoustic signalling of alarm conditions
Type of device: PU/T — Switch-mode universal power supplies, TS35 rail-mounted
Type of device: CB — RS-485 bus terminal boxes designed for use in Digital Gas Detection System
Type of device: MDD-CV/T — Digital signal converter allows to connect any PC/laptop to the RS-485 port of the MDD-256/T type supervisory control module
Swing valves MAG-3 Ex
Shut-off valves with a simple yet revolutionary and reliable design, a cost-effective and compact solution (ATEX)
Modular switchgear RZ+
Modular switchgear with TS35 rails, equipped and wired according to customer requirements (ready for installation)
