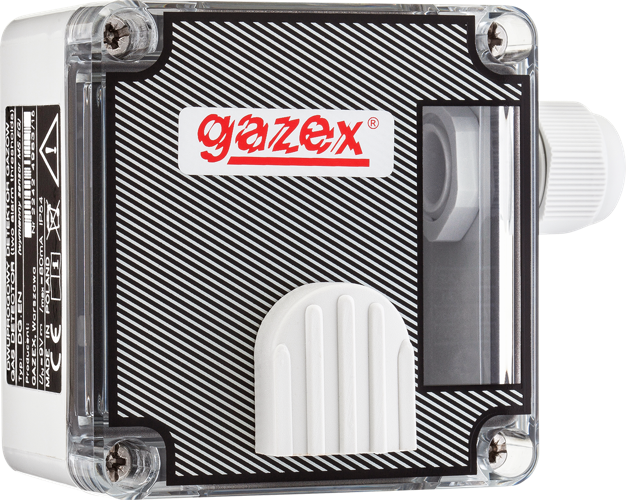

Concentration-measuring gas detectors DG-P.EN
Cost-effective, concentration measurement and detection devices for carbon dioxide (CO2) with splash-proof construction
The metering, cost-effective DG-P.EN detectors are designed for the selective measurement of carbon dioxide (CO2) concentrations up to 2% by volume in confined spaces.
Detectors are designed to cooperate with:
- measuring and threshold control units of type MDP-1.A/T, MDP-1 PLUS, MDP-4, MDP-8, MDP-16;
- addressable control units of type MDD-1, MDD-1/T, MDD-1x/T;
- with any other control panels accepting the 4-20 mA input line standard (with current emission).
Detectors type DG-P.EN are devices of ordinary construction and cannot be used in places classified as explosion hazard zones for gases, vapours or dust.
Area of application
- mushroom farms;
- greenhouses.
Offered models
| Model | Gas sensor module | Sensor | Substance/property | Standard alarm thresholds or measuring range | Supply voltage | Net price | C.g. | ||
|---|---|---|---|---|---|---|---|---|---|
| DG-P8R8.EN | MS-P8R8.EG | Infra-red |
Carbon dioxide (CO2) |
0 ÷ 2 |
%v/v |
System powered | PLN629.00 | N | |
| Model | Gas sensor module | Sensor | Substance/property | Standard alarm thresholds or measuring range | Supply voltage | Contact control outputs | Voltage control outputs 12VDC | Two-state outputs (threshold) | Control output "Fault" | Output controlling the shut-off valve | Output in 4-20mA standard | Output in 0-10V standard | Output in 2-10V standard | Output in RS-485 standard | Visual signalling, built-in | Acoustic signaling, built-in | Internal battery | Dimensions | Net price | C.g. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DG-P8R8.EN | MS-P8R8.EG | Infra-red |
Carbon dioxide (CO2) |
0 ÷ 2 |
%v/v |
System powered | — | — | — | — | — | ✓ | — | — | — | — | — | — | 82 x 110 x 68 mm | PLN629.00 | N | |
