Measuring & threshold control units MDP-1.plus

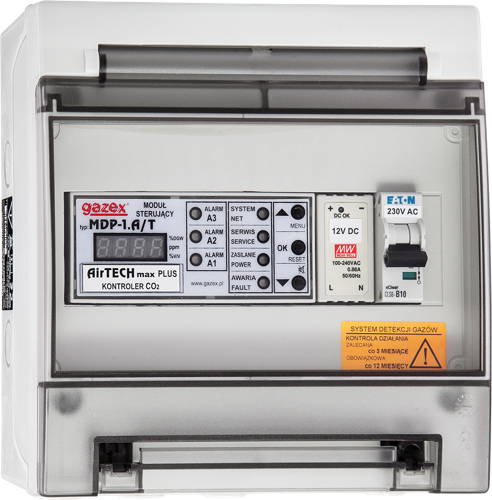

Sets consisting of MDP-1.A/T measurement and control unit, 12VDC power supply and double disconnector, placed in a sealed enclosure (mini switchboard)
The MDP-1.plus models are ready to install (wired) sets of the MDP-1.A/T measuring control units, 12 V DC modular power supply unit and a double disconnector, placed in a sealed enclosure (mini switchboard).
Microprocessor-controlled Control Unit type MDP-1.A/T was designed to work with single gas measuring detectors type DEX/P and DG/P or threshold detectors type DEX/F, DEX/A, DG/F and DG.EN.
When preset concentration values are exceeded, the optical alarm, and relay and voltage alarm outputs of the unit are activated (optional: communication via RS485).
Application area
- detection systems of toxic or explosive gases (or oxygen);
- individualized protection of industrial premises or equipment;
- dispersed gas detection systems.
Features
- power supply and control of one detector;
- control of the state of the wired connection to the detector (signals the interruption of any wire);
- configuration of the unit, setting of alarm threshold values (including „window” detection) using the keypad on the front panel;
- optical indication of signal values (LED display) and states of control outputs A1, A2, A3 and detector failure (LED lights);
- alarm outputs 12 V DC (one for each threshold A1 and A2) - power supply of acoustic and optical signaling devices;
- relay outputs (galvanically separated, one for A1, A2, A3 and Failures) - control of fans, contactors, information boards;
- optional: analogue output 4-20 mA or 2-10 V;
- optional: port in RS-485 standard, MODBUS RTU protocol; can be ordered in combination with option with analogue output;
- power supply indicated by an LED;
- removable, screwless terminals, possibility of using single- or multi-strand cable (without crimping sleeves);
- the models are equipped with a standard enclosure/ electrical switchgear, IP54;
- optionally for models equipped with RS-485 port: configuration and visualization of work through dedicated software „DETnet View” - available at https://www.gazex.pl/en/software/.
Offered models
Model | Maximum number of detectors | Emergency power backup | Supply voltage | Net price | C.g. | |
---|---|---|---|---|---|---|
MDP-1.plus | 1 | — | 230 V AC | PLN899.00 | N | |
MDP-1.plus/M |
|
1 | — | 230 V AC | PLN1,099.00 | N |
MDP-1.plus/M/420 |
|
1 | — | 230 V AC | PLN1,199.00 | N |
Model | Maximum number of detectors | Alarm control outputs 12VDC | Contact control outputs | Emergency control output | Output controlling the shut-off valve | Alarm inputs | Analogue 4-20mA output | Analogue 2-10V output | Digital RS-485 output | Mounting on a TS35 rail | Emergency power backup | Supply voltage | Dimensions | Net price | C.g. | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MDP-1.plus | 1 | 2 | 3 | ✓ | — | — | — | — | — | — | — | 230 V AC | 200 x 190 x 75 mm | PLN899.00 | N | |
MDP-1.plus/M |
|
1 | 2 | 3 | ✓ | — | — | — | — | ✓ | — | — | 230 V AC | 200 x 190 x 75 mm | PLN1,099.00 | N |
MDP-1.plus/M/420 |
|
1 | 2 | 3 | ✓ | — | — | ✓ | — | ✓ | — | — | 230 V AC | 200 x 190 x 75 mm | PLN1,199.00 | N |
