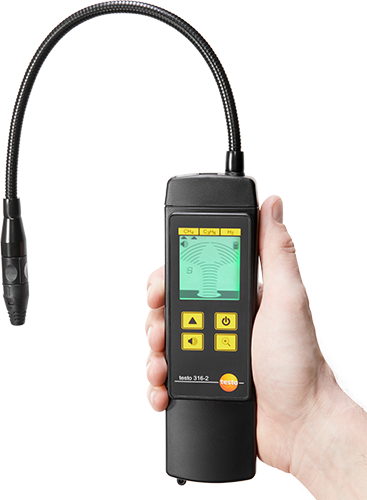

Portable gas detectors Testo 316-2
Portable gas detectors designed to detect leaks of low concentration combustible gases from gas and industrial installations
Testo 316-2 detectors are designed to detect leakage of low concentration gases from gas and industrial installations. They are recommended for maintenance of domestic and industrial gas installations/equipment, automotive LPG supply systems, etc.
The devices are of normal construction and cannot be used in areas defined as explosive gas, liquid vapour or dust explosion hazard.
Features
- built-in battery - working time at full charge approx. 6 hours;
- short response time t90 < 2 s (built-in suction pump);
- high sensitivity to explosive gases (lower response threshold – 10 ppm);
- switch to choose the detected gas: methane, propane, hydrogen;
- flexible, long measuring probe;
- 18-segment LCD display + battery charge indicator;
- two alarm levels;
- a switch for acoustic signalling and an external receiver (standard);
- built-in semiconductor sensor (service life approx. 3 years);
- optional: FT-316 case containing the detector, charger, handset, user manual.
Offered models
| Model | Sensor | Substance/property | Standard alarm thresholds or measuring range | Supply voltage | Net price | C/G | ||
|---|---|---|---|---|---|---|---|---|
| FT-316 | PLN109.00 | C | ||||||
| testo 316-2 | Semiconductor |
Methane (CH4) Propane (C3H8) Hydrogen (H2) |
0 ÷ 4 0 ÷ 1,9 0 ÷ 4 |
%v/v %v/v %v/v |
— | PLN1,439.00 | C | |
Detection of substance/property in other areas or other substances/properties is possible = special execution, requires consultation.
In special cases, it is possible to select the detector parameters for a specific application = required analysis of the conditions of use.
