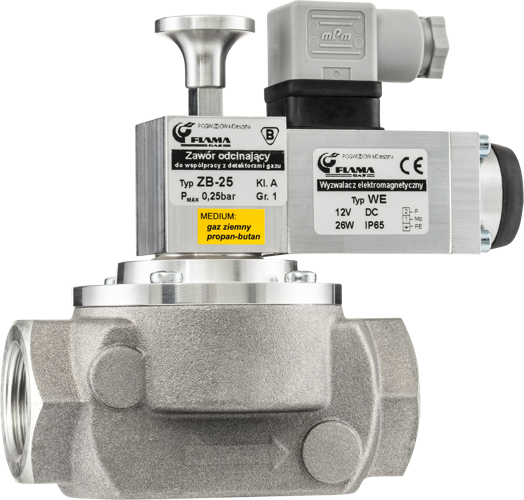

ZB-25
Device type: ZB Description of device type
Shut-off valves type ZB are fast closing globe valves for use with gas detectors (gas detection systems).
They are opened only manually and closed with an electric impulse (12VDC) or manually with a button. Both the opened and closed positions do not require power supply.
Activation of the valves – i.e. immediate cut-off of gas supply to a device or installation – results from electric impulse from the gas detection system upon gas concentration exceeding the preset threshold..
Area of application
- in gas installation safety systems: in gas boiler rooms, residential buildings, etc;
- in low-pressure gas installations;
- may additionally serve as a manual shut-off cock.
Features
- both opened and closed positions do not require power supply – they are energy efficient (an electrical pulse of 12V= with a duration of only < 1s is needed to close the valve);
- insensitive to system supply voltage loss – its absence or momentary disappearance does not cause changes in gas flow through the valve;
- resistant to any disturbances that may cause the valve to open accidentally when closed (only conscious action by supervisors);
- low force required to open the valve;
- simple, cost-effective, reliable and lightweight design;
- equipped with a mesh filter which guarantees long life;
- maximum operating pressure 25 kPa (0.25 bar);
- meets the requirements of PN-EN161.
Device model: ZB-25
Technical parameters
- Valve diameter
- DN25
- Nominal pressure
- 0.025 MPa
- Connection
- Threaded
- Connection diameter
- 1"
- Direction of gas flow
- direction according to the arrow on the housing
- Opening / closing the valve
- opening only manually; closing by electric pulse (12VDC) or manually
- Standard equipment
- ...
- Dimensions
- 115 x 145 x 80 mm
- EAN Code
- 5901769650893
- Net price
- PLN639.00 S
Documentation
Series | Technical data | Device information sheet | Instruction manual | Declaration of conformity |
---|---|---|---|---|
2/2010/KK | — | — | — | — |
