Device type: RZ PLUS Description of device type

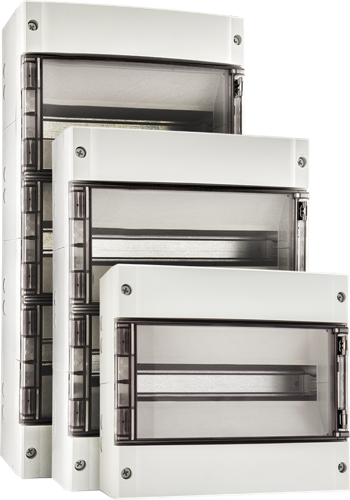

RZ PLUS modular, electrical switchgears are electrical switchgears, surface mounted, with 1, 2, 3 or 4 mounting rails 35mm. They accommodate devices from 9 to 14 modules wide on each rail. The price of the switchgear includes a lump sum cost of mounting devices inside the switchgear, the cost of standard internal wiring and a power switch.
Their use is particularly recommended for customers expecting quick installation and quick start-up of elements of Digital Gas Detection Systems (DGDS) or other detection systems with extensive control functions.
- splash-proof, surface-mounted enclosure (IP65), with transparent door (for each rail);
- 1, 2, 3 or 4 TS35 mounting rails;
- maximum capacity: RZ8_PLUS = 8 modules, RZ18_PLUS = 18 modules, RZ28_PLUS = 28 modules, RZ42_PLUS = 42 modules, RZ56_PLUS = 56 modules;
- rails can be mounted at different depths (e.g. for mounting more RM1P6 with a width of 1/3 mod.);
- rubber cable ports (standard or optional: according to type and number of installed devices);
- standard installation and wiring of all internal devices – included in the price of switchgear;
- double (supply 230VAC) or single switch (supply 12/24VDC).
Device model: RZ18_PLUS
- 430 x 270 x 155 mm
- EAN Code
- Net price
- PLN499.00 C
