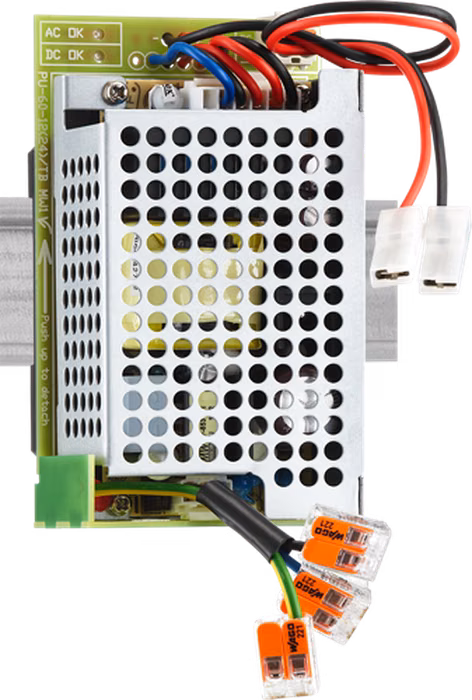

PU-60-12/TB
Device type: PU/TB Description of device type
Switch-mode universal power supplies PU/TB are designed to supply elements of gas detection systems (control units, detectors, warning boards and signalling devices) with a nominal supply voltage of 12VDC or 24VDC.
An external battery can be connected to provide power backup. It is designed for mounting on the TS35 rail in standard electrical switchgears.
Features
- rated output voltage 12VDC or 24VDC;
- output protection against overload and short circuit;
- possibility to provide power backup from an external maintenance-free battery (ordered separately) in case of mains voltage loss;
- limit of the battery charging current;
- optical indication of the presence of input and output voltage;
- mounting on TS35 rail.
Device model: PU-60-12/TB
Technical parameters
- Output voltage
- 12VDC
- Max. output power
- 60W
- Optional battery
- 3 ÷ 18 Ah
- Mounting on a TS35 rail
- Supply voltage
- 230VAC
- Dimensions
- 70 x 117 x 50 mm
- EAN Code
- 5901769650978
- Net price
- PLN229.00 S
Documentation
Series | Technical data | Device information sheet | Instruction manual | Declaration of conformity |
---|---|---|---|---|
MW1 | — | — | — | — |
