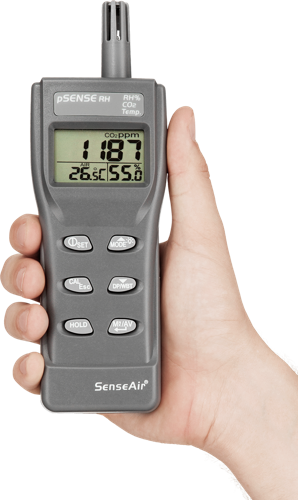

pSENSE II
Product model withdrawn from sale
Device group: Portable gas detectorsDevice type: pSENSE Description of device type
The pSENSE detectors are used to measure carbon dioxide concentration up to 2000/3000 ppm and ambient temperature. pSENSE RH version also measures humidity in the range 0-99%. Both pSENSE detectors uses CO2 optical sensors (NDIR - NonDispersive Infra Red). All functions are controlled by a microprocessor. This simplifies operation, allows for miniaturization and eliminates all the control elements. Detectors are equipped with protective cases.
Application
- diagnostics of ventilation systems in office buildings,
- mushroom growing facilities,
- greenhouses,
- detection of CO2 based extinguishing media leaks.
Device model: pSENSE II
Technical parameters
- Visual signalling, built-in
- Acoustic signaling, built-in
- Internal battery
- Dimensions
- 77 x 234 x 42 mm
| Sensor | Substance/property | Standard alarm thresholds or measuring range | |
|---|---|---|---|
| Infra-red |
Carbon dioxide (CO2) Temperature (T) Humidity (RH) |
0 ÷ 5000 -20 ÷ 60 0 ÷ 95 |
ppm °C %v/v |
Documentation
| Series | Technical data | Device information sheet | Instruction manual | Declaration of conformity |
|---|---|---|---|---|
| Edition 6 | — | — | — | — |
