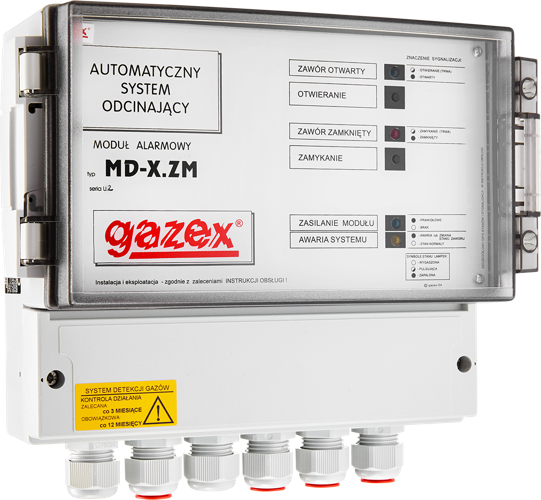

MD-X.ZM
Device type: MD-X.ZM Description of device type
MD-X.ZM units are designed for manual and automatic control of the ZM butterfly valve with 230VAC electric drive in the Automatic Cut-Off System.
MD-X.ZM is compatible with:
- butterfly valve type ZM with single-phase 230VAC drive (drive E50, E60, E100 or E65, E110) or three-phase 400VAC drive (via additional contactors),
- ball valve with EL-O-Matic rotary mechanism (single-phase drive EL100-800)
- or a valve with other single-phase electric drive having the same control and connection method (with limit switches).
Area of application
- industrial gas-fired boiler plants,
- installation of large gas consumers.
Features
- 230VAC voltage outputs to control valve closing and opening (or 3-phase motor contactors);
- voltage control inputs 12VDC: valve closing and opening;
- manual valve closing and opening with buttons on the front panel;
- optical indication of valve status (opening, closing, opening, closing);
- 12VDC alarm outputs for opening or closing state – to connect sirens e.g. piezoceramic siren or warning lamp;
- relay outputs (galvanically separated from the module) for opening and closing state – can control fans, contactors, etc;
- relay output for failure state (galvanically separated from the module) – no power supply or valve opening/closing, power failure.

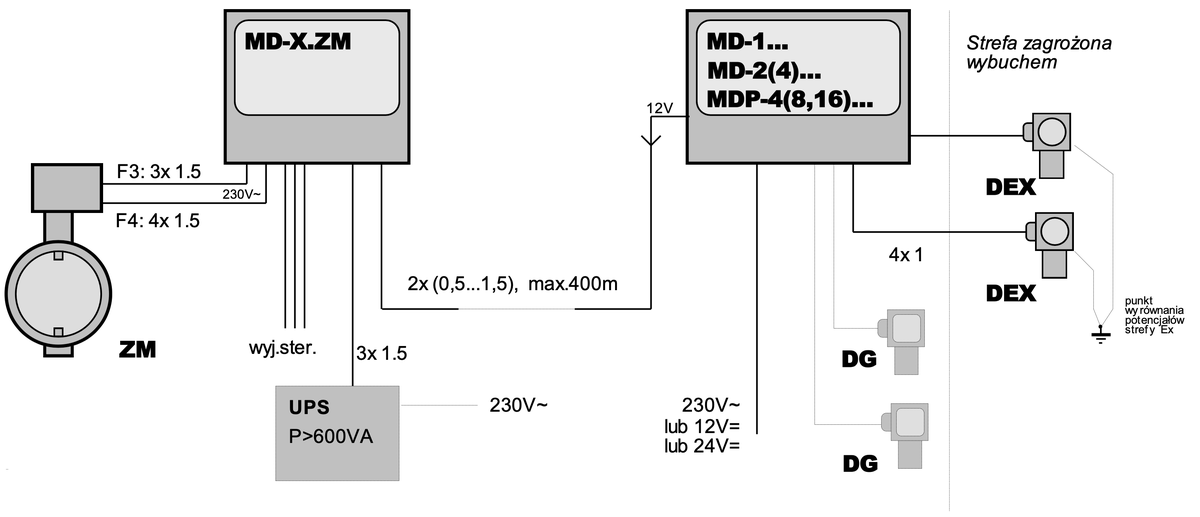

Block diagram
Device model: MD-X.ZM
Technical parameters
- Alarm control outputs 12VDC
- 2
- Contact control outputs
- 2
- Emergency control output
- Output controlling the shut-off valve
- Alarm inputs
- 2
- Supply voltage
- 230VAC
- Dimensions
- 240 x 215 x 120 mm
- EAN Code
- 5907704091301
- Net price
- PLN619.00 S
Documentation
Series | Technical data | Device information sheet | Instruction manual | Declaration of conformity |
---|---|---|---|---|
U3 | — | — | — | — |
Archived series | ||||
U2 | — | — | — | Download file |
