MD-1.A/T

MD-1.A/T TS35

Device model: MD-1.A/T
Device type: MD-1.A/T

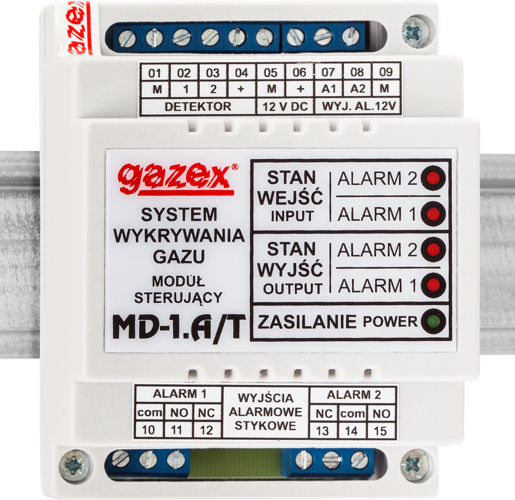

Control Unit type MD-1.A/T is designed to work with gas detector types DEX/F, DG/F or DG.EN produced by GAZEX. It is used to build large Gas Detection Systems.

Application scope

  • local toxic, oxygen or explosive gas detection systems
  • individual protection installations in individual areas
  • dispersed gas detection systems

Features

  • one gas detector input for DEX/F, DG/F or DG.EN type (power supply with current limitation and connection control)
  • status control of the wired connection to the detector (signals interruption of any wire)
  • visual alarm states and control outputs (without memory)
  • A1, A2 - 12VDC alarm outputs for the external signaling devices
  • separated relay outputs (one for each threshold) for the external signaling devices or fans steering
  • case for mounting in standard cabinets (35mm DIN rail)
  • outputs functionally compatible with control units outputs type MD-2 (4,8,16) (but no FAILURE output and no remote control input)
  • 12V DC supply (with LED signalization)
  • the ability to power directly from PU/T type universal power supply or universal control module type UMS-3/T (for 35mm DIN rail)

Block diagram

Technical parameters

Maximum number of detectors
1
Alarm control outputs 12VDC
2
Contact control outputs
2
Mounting on a TS35 rail
Supply voltage
12VDC
Dimensions (W x H x D)
68 x 90 x 65 mm
Net price
159.00 zł S

Documentation

Series Technical data Device information sheet Instruction manual Declaration of conformity
U1 Download file Download file
