Modular relays RM

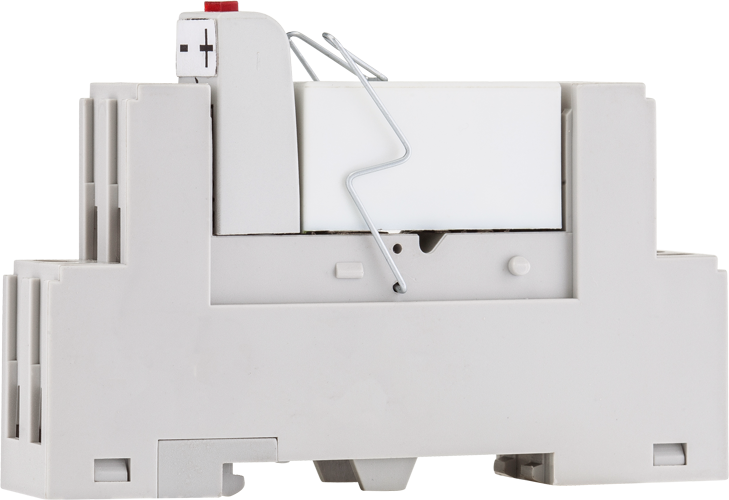

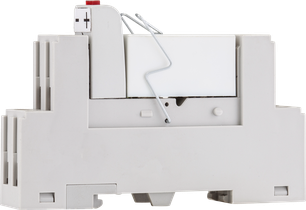

RM series modular relays (with 12 V DC or 24 V DC coil) are an accessory to control units and detectors manufactured by GAZEX. They enable multiplication of relay outputs and galvanic separation from control circuits (RM1 – 1 no/nc contact, RM2 – 2 no/nc contacts). They are equipped with a control lamp to indicate voltage in the coil and a surge protection system.

They are designed to be mounted on a 35mm rail in typical electrical switchgears.

Offered models

Model Dimensions Net price C.g.
RM1P6/12 6,2 x 80 x 94 mm PLN69.00 C
RM1P6/24 6,2 x 80 x 94 mm PLN69.00 C
RM2P8/12 16 x 67 x 82 mm PLN69.00 C
RM2P8/24 16 x 67 x 82 mm PLN69.00 C
Model Dimensions Net price C.g.
RM1P6/12 6,2 x 80 x 94 mm PLN69.00 C
RM1P6/24 6,2 x 80 x 94 mm PLN69.00 C
RM2P8/12 16 x 67 x 82 mm PLN69.00 C
RM2P8/24 16 x 67 x 82 mm PLN69.00 C
