Additional control units MDPL1
Interface unit for connecting DEX/P detector to other manufacturers’ measurement systems equipped with the standard 4-20 mA current loop with active input
Interface unit MDPL1 is a device used for connecting the DEX/P detector (types: P6…, P4…) manufactured by GAZEX to other manufacturers’ measurement systems with active 4-20 mA current loop.
The device limits the power and the voltage supplied to DEX/P detector head up to the limit values allowed in the ATEX Directive EC-Type Examination Certificate, i.e. Pi = 2 W, Ui = 15 V DC.
Features
- the possibility of connecting one DEX/P head to one measurement system’s input
- 4-20 mA output (passive)
- current loop line error indication (Io ≤ 0,5 mA or Io ≥ 21 mA)
- 24 V DC supply voltage
- watertight, robust metallic enclosure
- very simple and fast connection/installation

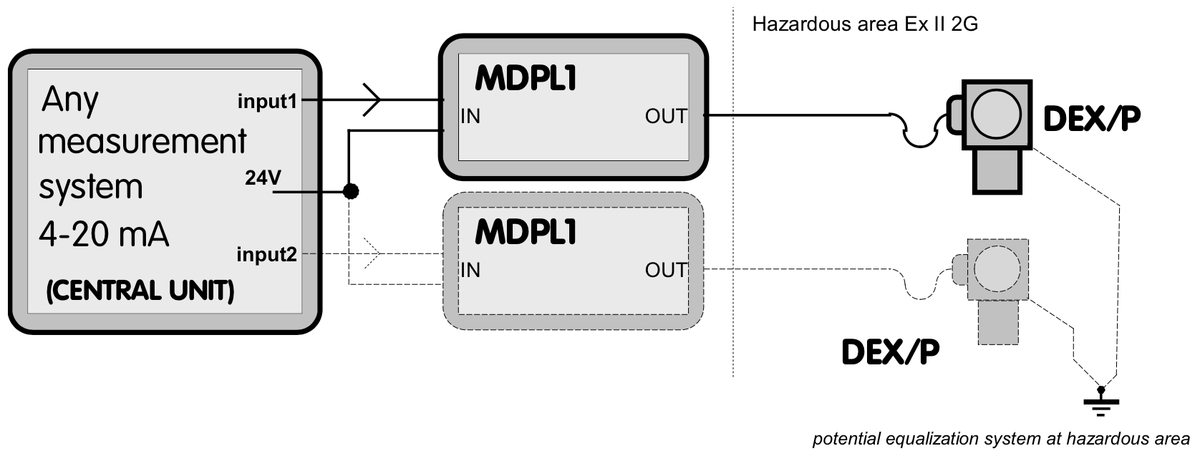

Block diagram
Offered models
| Model | Maximum number of detectors | Emergency power backup | Supply voltage | |
|---|---|---|---|---|
| MDPL1 |
|
1 | — | 24 V DC |
| Model | Maximum number of detectors | Alarm control outputs 12VDC | Contact control outputs | Emergency control output | Output controlling the shut-off valve | Alarm inputs | Analog output in the 4-20 mA standard | Analog output in the 2-10 V standard | Digital output in the RS-485 standard | Emergency power backup | Supply voltage | Dimensions | Net price | Gross price | C.g. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MDPL1 |
|
1 | — | — | ✓ | — | — | ✓ | — | — | — | 24 V DC | 66 x 160 x 49 mm | PLN199.00 | PLN244.77 | C |
