Device group: Ventilation controllers in closed garages and underground parking lots – Devices for automatic ventilation control

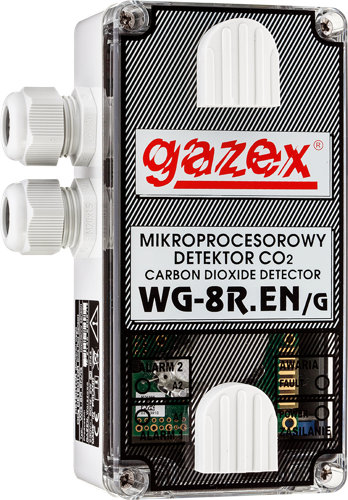

Type of device: Ventilation controllers in closed garages and underground parking lots WG-8R.EN/G – Progowe, ekonomiczne detektory dwutlenku węgla (CO₂), przeznaczone do sterowania wentylacją w pomieszczeniach, gdzie eksploatowane są pojazdy z silnikami Diesla
Device model: WG-8R.EN/GA
Suggested replacement: WG-8R8.EG/A

Technical parameters

Gas sensor module	Sensor	Substance/property	Standard alarm thresholds	Measuring range	Unit
MS-8R.EG	Infra-red	Carbon dioxide (CO2)	1000/1400/1800	500—5000	ppm

Contact control outputs

2

Visual signalling, built-in

✓

Supply voltage

12 V DC

Dimensions

117 x 172 x 70 mm
