TP-42/H4

TP-42/H4

Product model withdrawn from sale

Device group: Warning boards
Device type: TP-42

Illuminated warning board type TP-42 is designed to display warnings in case of an alarm signaled by outputs of WG type detectors (underground garages) or MD type control units (toxic gas detection systems) manufactured by GAZEX.

Warning boards come with default warnings or signs customized to Client’s requirements. Warnings are illuminated in active mode only.

TP-42 cannot be used in premises identified as zones with potentially explosive atmosphere.

Features

  • signs invisible when not illuminated, displayed when power is on
  • light source: fluorescent lamps 230VAC, 18W x 2
  • high resistance and reliability
  • low energy consumption
  • simple installation on walls (may be suspended from ceilings)
Standard signs (in polish)
  • H1 - „NIE WCHODZIĆ NADMIAR SPALIN”

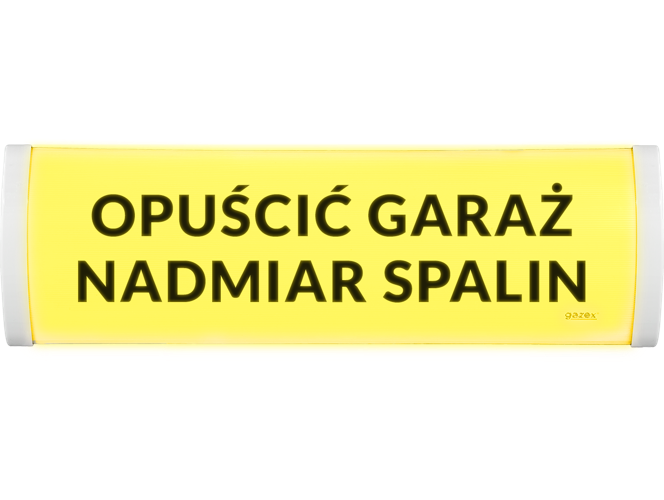

  • H2 - „OPUŚCIĆ GARAŻ NADMIAR SPALIN”
  • H3 - „NIE WJEŻDŻAĆ NADMIAR SPALIN”
  • H4 - „WYCIEK AUTOGAZU ZACHOWAĆ OSTROŻNOŚĆ”
  • H5 - „UWAGA ! NADMIAR SPALIN”
Other signs
  • H0 - any inscription, according to specification (2 rows of inscriptions, 20 characters max. per row)


Device model: TP-42/H4

Technical parameters

Visual signalling
black letters on an illuminated yellow background
Information lettering
WYCIEK AUTOGAZU ZACHOWAĆ OSTROŻNOŚĆ
Supply voltage
230VAC
Dimensions
685 x 210 x 75 mm
EAN Code
5901769650121

Documentation

Series Technical data Device information sheet Instruction manual Declaration of conformity
