TC-DEX

TC-DEX

Device group: Gas test
Device type: GTS
  • Testing caps TC – test gas supply caps:

    when checking the correct operation of these devices. Offered separately is a gas tube for low reactive gases, and for TC-DEX and TC-DG also a tube for reactive gases;

  • CHS-03 gas humidifier – necessary only when testing a detector with a semiconductor sensor – polycarbonate humidifier + 0.5m low-reactive gas line + humidifier solution container included;

  • CFR-05 – low-reactive gas regulator with a constant flow rate of 0.5 l/minute, with pressure gauge, for manual installation on a 50 or 110l disposable cylinder of test gas;

  • 250ml container – moisturizing solution container 250ml (contains 100g of dry NaCl);

  • CRC-2 – black case/bag for transporting and conveniently carrying the entire gas test kit – equipped with a gas cylinder compartment with a regulator, a test cap pocket with a hose, a pocket for the humidifier container and regulator box and a shoulder strap.

The TC-DEX cap, in accordance with the EC Type Examination Certificate No. KDB 04ATEX133X together with Supplementary Certificates (for the DEX detector), can be used in zones 1 or 2, with an explosion hazard of gases group IIA or IIB.



Device model: TC-DEX

Technical parameters

Additional parameters

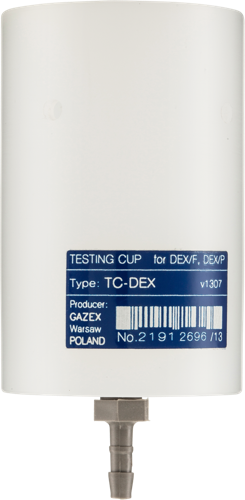

Test cap for DEX/F, DEX/A, DEX/P detectors
Dimensions
50 x 75 x 50 mm
EAN Code
5901769657076
Net price
PLN199.00 C

Documentation

Series Technical data Device information sheet Instruction manual Declaration of conformity
2020
1612
1505
