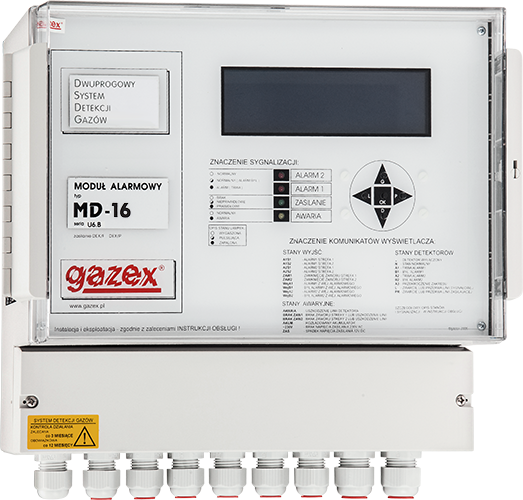

MD-16.A24/M
Discontinued
Discontinued
Type of device » Threshold control units MD-8, MD-16
Technical specification
| Maximum number of detectors | 16 |
|---|---|
| Alarm control outputs 12VDC | 4 |
| Contact control outputs | 4 |
| Emergency control output | ✓ |
| Alarm inputs | 2 |
| Digital output in the RS-485 standard | ✓ |
| Supply voltage | 24 V DC |
| Dimensions | 330 x 300 x 150 mm |
| Suggested replacement | MDP-16.A24/M |
Documentation
| Series | Technical data | Device information sheet | User Manual | Declaration of conformity | |
|---|---|---|---|---|---|
| W1 | Download file | Download file | Download file | Download file | |
| Archived series | |||||
| U6 | Download file | — | Download file | Download file | |
| U5 | Download file | — | — | — | |
