AirTECH agro+/M

AirTECH agro+/M Digital RS-485 output

Product model withdrawn from sale

Device group: Ventilation controllers
Device type: AirTECH agro+

AirTECH agro+ is an ventilation controller used to monitor indoor carbon dioxide concentration in the range of 0÷5000 ppm (optionally up to 20% v/v). Measurement of CO2 is realized by state-of-the-art non-dispersive infrared sensor.

In particular, the unit is designed to be used in greenhouses, mushroom farming, food transportation etc.

AirTECH agro+ is supplied with a control module with relay outputs to control the ventilation system and 12VDC alarm outputs for signaling. Optionally the module can be equipped with 4-20mA output and/or RS485 MODBUS digital output.

Features

AirTECH agro+ consists of two units: a remote CO2 sensor (to be mounted in the monitored room) and a control module.

CO2 sensor
  • state-of-the-art non-dispersive infrared (NDIR) technology to measure carbon dioxide gas concentration;
  • 4-20mA analog output;
  • internal automatic self diagnostic and calibration;
  • long sensor operating lifetime (> 10 years);
  • wall-mounted housing (IP43) with standard connecting cable (10m, can be upgraded up to 150m);
  • universal mounting bracket;
  • all sensors are calibrated in our own GAZEX Calibration Laboratory operating in accordance with PN-EN ISO/IEC 17025 (PCA accreditation No AP150).
Control module
  • internal digital control unit type MDP1.A/T, with 3 threshold levels (settable from push-buttons), 4-digit LED display, 7 status LEDs;
  • IP54 wall-mount cabinet;
  • Standard 4 relay outputs (max 250VAC);
  • 12VDC power supply + 230VAC power-on switch mounted on standard 35mm rail;
  • Optionally: 4-20mA analog output and/or RS485 MODBUS digital output.

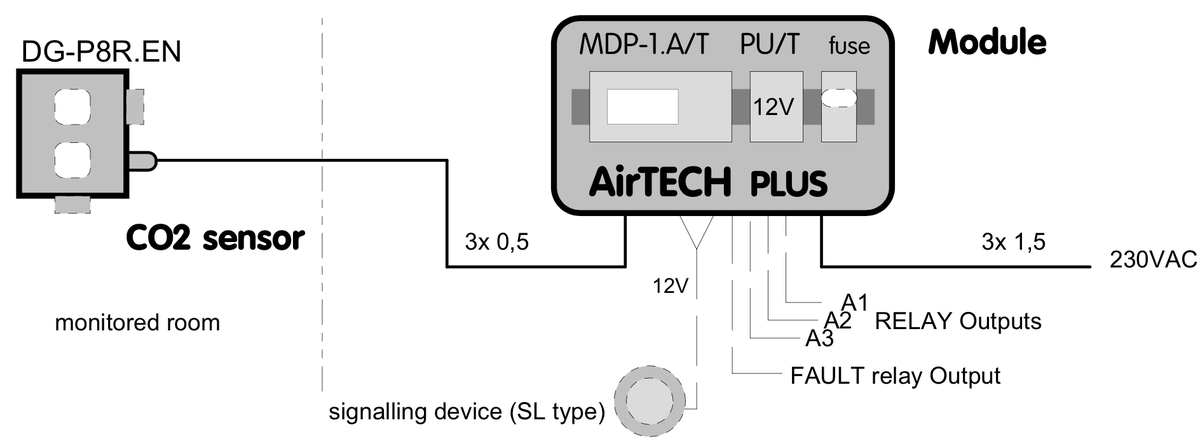

Connection diagram



Device model: AirTECH agro+/M

Technical parameters

Gas sensor module Sensor Substance/property Standard alarm thresholds or measuring range
MS-P8R8.EN Infra-red Carbon dioxide (CO2)
0 ÷ 2
%v/v

Contact control outputs
3
Voltage control outputs 12VDC
2
Control output "Fault"
Output in RS-485 standard
Visual signalling, built-in
Supply voltage
230VAC
Dimensions
detektor: 110 x 95 x 75, moduł: 190 x 200 x 110 mm

Documentation

Series Technical data Device information sheet Instruction manual Declaration of conformity
