Device group » Measuring & threshold control units – Devices controlling and supplying power to threshold & concentration-measuring gas detectors (in passive 4-20 mA) standard, with additional control outputs for external devices
Type of device » Measuring & threshold control units MDP-4, MDP-8, MDP-16 – Measurement and control (also power supply) units for up to 4/8/16 measuring gas detectors types DEX/P, DG/P or threshold gas detectors types DEX/F, DEX/A, DG/F, DG.EN

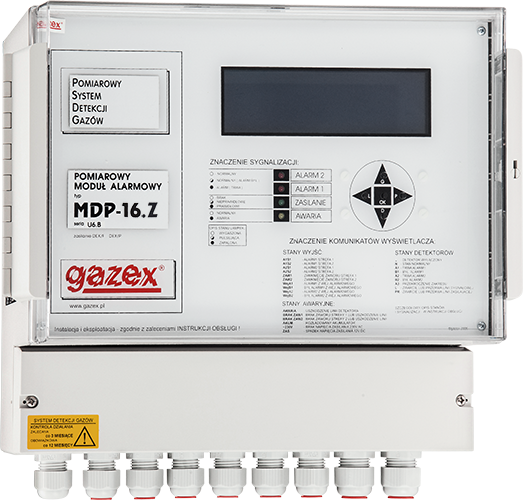

Device model » MDP-16.ZA24/M

Technical parameters

Maximum number of detectors

16

Alarm control outputs 12VDC

4

Contact control outputs

4

Emergency control output

✓

Output controlling the shut-off valve

✓

Alarm inputs

2

Digital output in the RS-485 standard

✓

Analog communication in the 4-20 mA standard

✓

Supply voltage

24 V DC

Dimensions

330 x 300 x 150 mm

EAN Code

5901769653887

Net price

PLN2,609.00 N
