Device group » Addressable control units – Additional control units for building both centralised and distributed Digital Gas Detection Systems with RS485 bus
Type of device » Addressable control units MDD-1/T – Addressable executive and power supply units for one DEX/F, DEX/A, DG/F, DG.EN, DEX/P or DG/P detector, individual control outputs, TS35 rail mounting

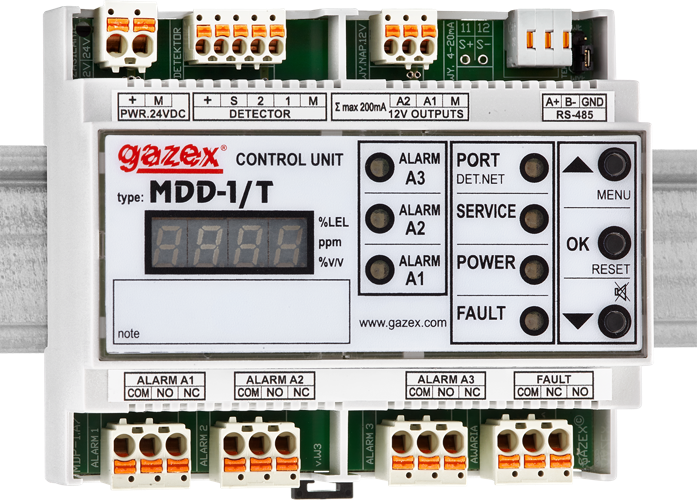

Device model » MDD-1/T/V10

Technical parameters

Maximum number of detectors

1

Alarm control outputs 12VDC

2

Contact control outputs

4

Emergency control output

✓

Analog output in the 2-10 V standard

✓

Digital communication in the RS-485 standard

✓

Mounting on the TS-35 rail

✓

Supply voltage

24 V DC

Dimensions

106 x 90 x 65 mm

EAN Code

5901769657229
